How To Install Pool Table Felt
To download in PDF format please click here.
Rail Cutting Guide
To cut the cloth for your rails, "snip & rip" six strips from the location, indicated by the following charts for your table size and cloth type. Each strip needs to be six inches wide.
Q: What size is my table?
A: Simply measure between the rails and refer to the chart to the right.
Q: Can I recover my table myself?
A: Yes. If you feel comfortable using a wrench and a stapler, it should be a fun project.
Q: What do I get when I order the felt?
A: You receive one piece of cloth that is sufficient to cover the bed of the table and the six rails. Installation instructions are also included.
Q: Do I need glue?
A: That depends. On some tables, the cloth is held in place by a band of glue around the edges of the slate. Other tables have staples securing the cloth.
Q: Which side is up?
A: The smooth side is up, the fuzzy side is down.
Q: How do I make the rail cloth strips?
A: Use the drawings to the right to see where to "snip & rip" the cloth for the rails. The rails should be 6" wide.
Q: What do you mean "snip & rip"?
A: To make perfect cuts, simply make a one inch cut into the cloth, then just rip it! Woven cloth easily tears in a straight line.
1. Lay the bed cloth over top of slate, play side up. Leave only enough cloth at head end and left to permit tracking, leaving balance of the cloth hanging on the foot end and right side. Staple cloth securely to slate frame at (1) with 4 staples approximately 1" apart.
2. Stretch cloth across the table and staple securely at (2) again using 4 staples as indicated above.
(Four staples recommended for stretch.)

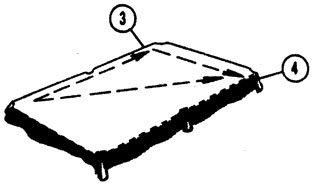

3. Stretch cloth from (1) to (3) and tack securely, maintaining proper margin on the left side of the table.
4. Stretching cloth across table from (3) and pulling from (2), tack cloth at (4).

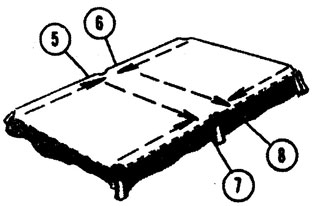

5. On left side, stretch cloth tightly from (1) toward side pocket opening and tack securely at (5).
6. Repeat operation 5, stretching cloth from (3) and tacking at (6).
7. On right side of table, grasp cloth firmly, stretch across table from (5) and toward side pocket from (2) and tack at (7).
8. Repeat operation 7, stretching cloth from (6) and toward side pocket from (4) and tack at (8).

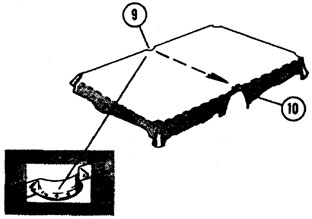

9. At (9), cut a short slit in cloth at edge centered with side pocket opening. Grasp cloth firmly above this slit, pull cloth into side pocket opening and tack to undercut of slate frame. Complete tacking of cloth to side pocket opening, making sure that cloth is tacked to undercut of slate frame.
10. Stretching cloth tightly across the table from (9) repeat the above operation at (10). Be sure to tack cloth to undercut of slate frame.

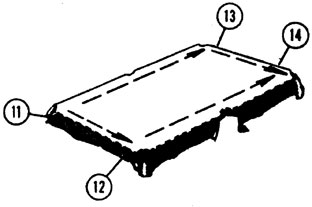

11. At Head End of table, tack cloth at (11), holding the proper margin.
12. Pull cloth from (11) toward (12) and tack securely, holding proper margin.
13. Stretch cloth firmly from (11) to Foot End of table and tack at (13).
14. Stretch cloth tightly from (12) and (13) toward (14) and tack securely.

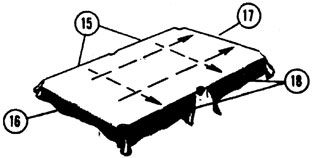

15. Tack all of Left Side on 3" centers holding to proper margin (15).
16. Tack balance of Head End on 3" centers holding the proper margin (16).
17. Stretch cloth tightly toward Foot End of table, tacking on 3" centers all the way across (17).
18. Stretch cloth tightly across table to Right Side, tacking on 3" centers all the way across (18).
19. Stretch cloth into corner pocket openings and tack to undercut of slate frame (19).
20. Cut holes in cloth at rail bolt locations (20).
21. Trim off excess cloth with a sharp knife (21).
NOTE: When installing cloth on carom tables, eliminate operations No. 5, 6, 7, 8, 9, 10, and 19. Otherwise follow same procedure as outlined above. Occasionally cloth will stretch, leaving wrinkles at the pockets. To re-tighten, remove only one end rail and one side rail. Pull cloth taut, and re-tack along the open end and side to restore original tightness.
Cushion Cloth Replacement
1. Prepare rails
Remove rails from table.

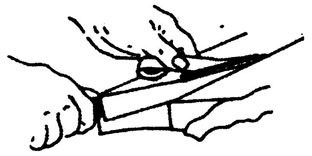

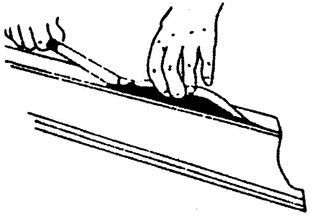

Carefully remove old feather strips and save for re-use.
2. Install Feather Strips

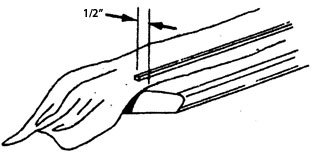

A. With rail face up, place new cloth on rail with playing surface down. Center cloth on rail, with approximately 4" of cloth at each end and 1/2" of cloth beyond the feather strip slot.

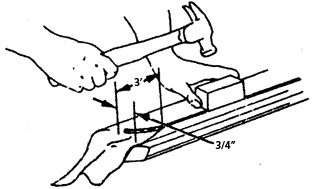

B. For corner pockets, tap feather strip in place except for 3" at each end. Start approximately 2" from end of feather strip and pull cloth toward rubber cushion until the edge of the cloth is approximately 3/4" from the end of the feather strip. Tap feather strip in place.

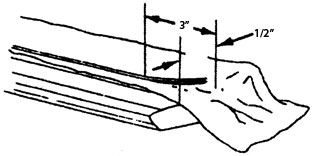

C. For side pockets, start approximately 3" from end of rail and pull cloth toward rubber cushion until the edge of the cloth is approximately 1/2" from the end of the feather strip. Tap feather strip in place.

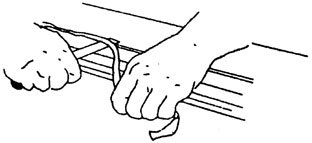

D. Pull cloth tight and tap feather strip in place, then trim cloth along cushion side of feather strip. Fold cloth over cushion and tap full length of feather strip flush with rail cap.
NOTE: IF FEATHER STRIPS ARE LOOSE ADD A STRIP OF MASKING TAPE THE FULL LENGTH OF STRIP.
3. Staple Cloth

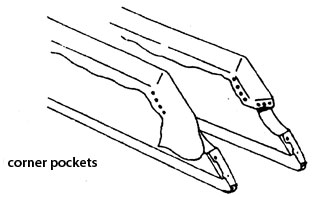

A. Pull cloth tightly downward and staple with four staples along bottom of rail. Pull cloth tightly over end of rail and staple with three staples in groove back of cushion reinforcing pad.

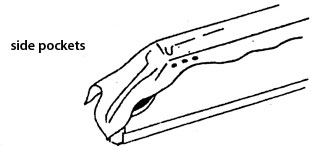

B. For side pockets, stretch cloth firmly over nose of cushion toward the bottom without distorting cushion shape. Pull cloth tightly toward side pocket before tacking. Staple cloth to rail bottom approximately 1" from pocket opening.

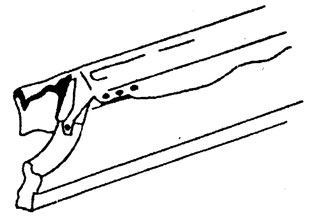

C. Snip cloth at nose and pull small strip down to groove. Staple in place as shown. Then snip (or fold) excess cloth leaving enough for small fold at the top as shown.

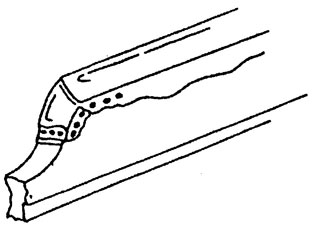

D. Hold small fold at top in place, then fold entire piece over. Staple at bottom of rail and at groove with three staples each. Stretch balance of cloth tightly over cushion and staple at bottom of rail, starting at the center, and working toward the ends. Space staples about 1" apart. Be sure cloth is snug, but not tight enough to after shape of the cushion.

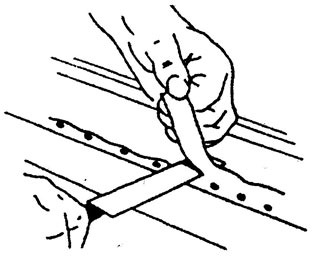

E. Trim excess cloth from rail. Be sure at least 1/4" of cloth remains after trimming.
